本文利用Listbox自绘实现了两种特殊效果，其中第两种风格来自C++ Builder 研究 www.ccrun.com，老妖用BCB实现了，现在把它转换成Delphi代码。

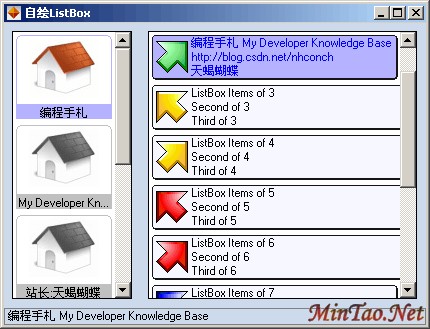

演示图片：
//--------------------------------------------------------------------------
unit DrawListItem;
interface
uses
Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
Dialogs, StdCtrls, ImgList, jpeg, ExtCtrls;
type
TForm1 = class(TForm)
lsbRight: TListBox;
ImageList1: TImageList;
StaticText1: TStaticText;
lsbLeft: TListBox;
imgHouse: TImage;
imgHouseGray: TImage;
procedure FormCreate(Sender: TObject);
procedure lsbRightDrawItem(Control: TWinControl; Index: Integer;
Rect: TRect; State: TOwnerDrawState);
procedure lsbRightClick(Sender: TObject);
procedure FormShow(Sender: TObject);
procedure lsbLeftDrawItem(Control: TWinControl; Index: Integer;
Rect: TRect; State: TOwnerDrawState);
private
public
{ Public declarations }
end;
var
Form1: TForm1;
implementation
{$R *.dfm}
{========================================================================
DESIGN BY : 彭国辉
DATE: 2004-11-29
SITE: http://kacarton.yeah.net/
BLOG: http://blog.csdn.net/nhconch
EMAIL: kacarton@sohu.com
文章为作者原创，转载前请先与本人联系，转载请注明文章出处、保留作者信息，谢谢支持！
=========================================================================}
procedure TForm1.FormCreate(Sender: TObject);
var
i: integer;
begin
lsbRight.Style := lbOwnerDrawFixed;
lsbRight.Ctl3D := false;
lsbRight.ItemHeight := 50;
lsbRight.Items.Add(''''C++ Builder 研究 www.ccrun.com''''#13''''致力于BCB的学习探讨和研究''''#13''''ccrun(老妖)'''');
lsbRight.Items.Add(''''编程手札 My Developer Knowledge Base''''#13''''http://blog.csdn.net/nhconch''''#13''''天蝎蝴蝶'''');
for i:=3 to 10 do begin
lsbRight.Items.Add(''''ListBox Items of '''' + IntTostr(i) + #13''''Second of ''''
+ IntToStr(i) + #13''''Third of '''' + IntToStr(i));
end;
lsbLeft.Style := lbOwnerDrawFixed;
lsbLeft.Ctl3D := false;
lsbLeft.ItemHeight := 90;
lsbLeft.Items.Add(''''编程手札'''');
lsbLeft.Items.Add(''''My Developer Knowledge Base'''');
lsbLeft.Items.Add(''''站长:天蝎蝴蝶'''');
lsbLeft.Items.Add(''''http://blog.csdn.net/nhconch'''');
end;
procedure TForm1.lsbRightDrawItem(Control: TWinControl; Index: Integer;
Rect: TRect; State: TOwnerDrawState);
var
strTemp: String;
begin
//文字颜色
lsbRight.Canvas.Font.Color := clBlack;
//设置背景颜色并填充背景
lsbRight.Canvas.Brush.Color := clWhite;
lsbRight.Canvas.FillRect (Rect);
//设置圆角矩形颜色并画出圆角矩形
lsbRight.Canvas.Brush.Color := TColor($00FFF7F7);
lsbRight.Canvas.Pen.Color := TColor($00131315);
lsbRight.Canvas.RoundRect(Rect.Left + 3, Rect.Top + 3,
Rect.Right - 2, Rect.Bottom - 2, 8, 8);
//以不同的宽度和高度再画一次，实现立体效果
lsbRight.Canvas.RoundRect(Rect.Left + 3, Rect.Top + 3,
Rect.Right - 3, Rect.Bottom - 3, 5, 5);
//如果是当前选中项
if(odSelected in State) then
begin
//以不同的背景色画出选中项的圆角矩形
lsbRight.Canvas.Brush.Color := TColor($00FFB2B5);
lsbRight.Canvas.RoundRect(Rect.Left + 3, Rect.Top + 3,
Rect.Right - 3, Rect.Bottom - 3, 5, 5);
//选中项的文字颜色
lsbRight.Canvas.Font.Color := clBlue;
//如果当前项拥有焦点，画焦点虚框，当系统再绘制时变成XOR运算从而达到擦除焦点虚框的目的
if(odFocused in State) then DrawFocusRect(lsbRight.Canvas.Handle, Rect);
end;
//画出图标
ImageList1.Draw(lsbRight.Canvas, Rect.Left + 7,
Rect.top + (lsbRight.ItemHeight - ImageList1.Height) div 2, Index, true);
//分别绘出三行文字
strTemp := lsbRight.Items.Strings[Index];
lsbRight.Canvas.TextOut(Rect.Left + 32 + 10, Rect.Top + 4
, Copy(strTemp, 1, Pos(#13, strTemp)-1));
strTemp := Copy(strTemp, Pos(#13, strTemp)+1, Length(strTemp));
lsbRight.Canvas.TextOut(Rect.Left + 32 + 10, Rect.Top + 18,
Copy(strTemp, 1, Pos(#13, strTemp)-1));
lsbRight.Canvas.TextOut(Rect.Left + 32 + 10, Rect.Top + 32,
Copy(strTemp, Pos(#13, strTemp)+1, Length(strTemp)));
end; [1] [2] 下一页
